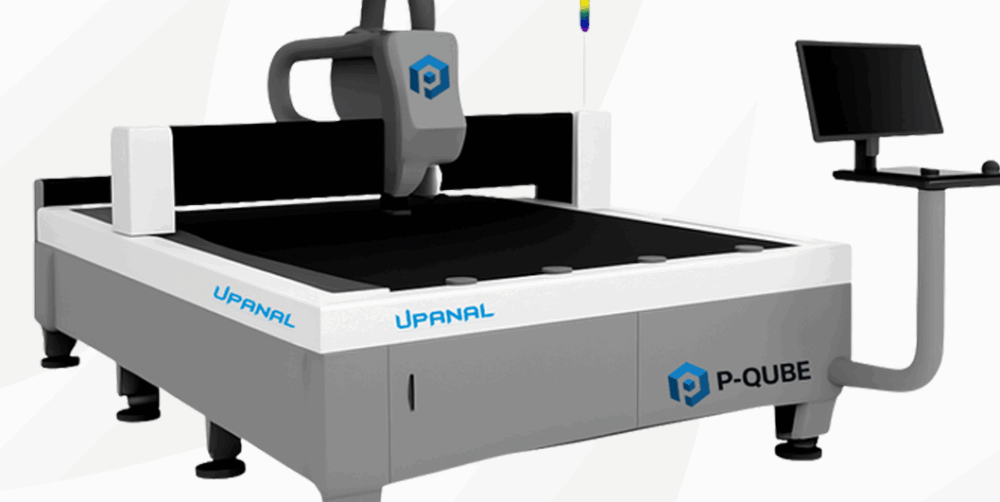

P-Qube P4 Series
P-Qube series Fiber lasercutting machine is used in metal processing, aerospace, electronic appliances, home appliances, elevators, automobiles, advertising, precision accessories, craft gifts and other manufacturing industries.
The equipment is designed with a gantry double drive structure, which is dual gear rack and dual servo motor drive system with high-speed arc cutting function, that can effectively meet the application requirements of metal materials such as carbon steel, stainless steel, aluminum plate, galvanized sheet, etc.
Our Services Include
Id amet illo eos aspernatur omnis in obcaecati expedita est consequatur beatae ea quibusdam praesentium sed enim possimus non quia mollitia. Et fuga doloribus aut quos quasi aut maxime saepe et accusamus.
Solutions & Benefits
Every machine begins with structural design, finite-element analysis, and engineering validation — not shortcuts. Critical components are CNC-machined to tight tolerances to ensure long-term accuracy under industrial load.
Designed with Engineering
Our welded frames undergo secondary annealing to eliminate internal stress and guarantee stability during high-speed cutting. Gantry alignment, rack & pinion positioning, servo tuning, and focus control are calibrated with meticulous detail.
-
- Engineered From the Ground Up
- Rigid Frame Fabrication & Annealing
- Industrial-Level Performance Validation
Benefit Of Service
Working Parameters
| Working Parameter | P4 |
|---|---|
| Working Area | 4000mm × 2000mm |
| Laser Power | 1.5kW - 12kW |
| Transmission System | Double rack & pinion and servo drive |
| Max Acceleration | 1.4G |
| Max Speed | 140m/min |
| Positioning Accuracy | +/- 0.05mm / 1000mm |
| Repositioning Accuracy of Clamp | +/- 0.03mm / 1000mm |
| Format | LXD, DXF, PLT, AI, NC etc. |
| Working Environment | 0 - 45°C • Humidity ≤ 80% • Non-condensing |
| Equipment Power | 10kW (without laser & chiller) |
| Power Supply | Three phase 380V/50Hz or 60Hz |
| Max Load | 3600Kg |
| Machine Weight | <1400Kg |
| Overall Size | 6400×2800×2100mm |
