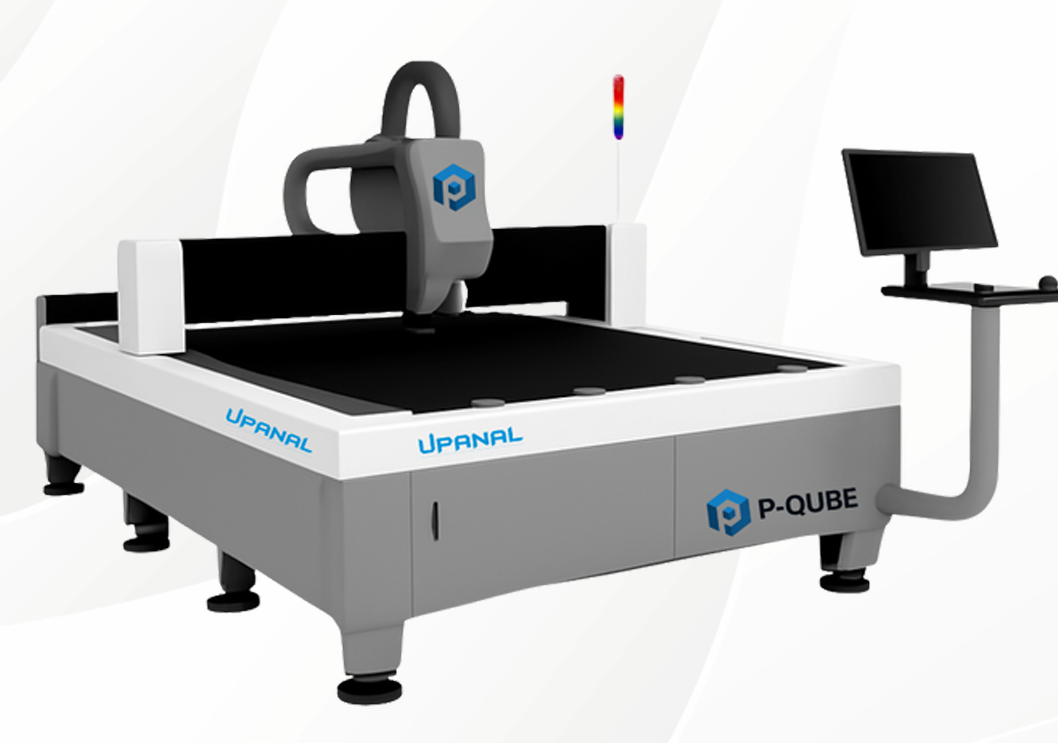

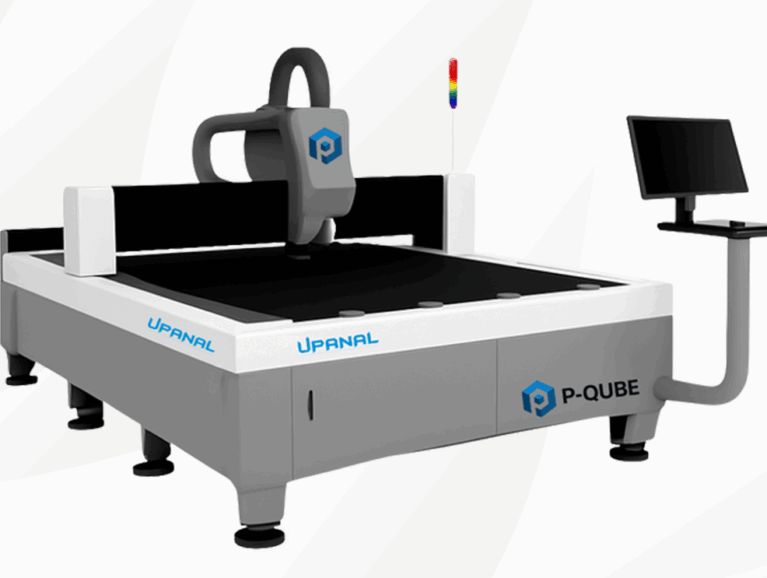

P-Qube Series

P-Qube series Fiber lasercutting machine is used in metal processing, aerospace, electronic appliances, home appliances, elevators, automobiles, advertising, precision accessories, craft gifts and other manufacturing industries. The equipment is designed with a gantry double drive structure, which is dual gear rack and dual servo motor drive system with high-speed arc cutting function, that can effectively meet the application requirements of metal materials such as carbon steel, stainless steel, aluminum plate, galvanized sheet, etc.

Machines Installed

1 +

Skilled Engineers

0 +

Customers Served

60 +

Service Network

12 /7

Our Product Range

High Rigidity Enhanced Aviation Aluminum Gantry, improve the gantry strength and rigidity and much lighter,Finite element analysis of gantry help to achieve the best critical state of dynamic performance; Integrated structure design, reasonable overall layout

Working area: 6500*2500mm

Working area: 4000*2000mm

Working area: 3000*1500mm

Technical Details.

Working Parameter	P3	P4	P6
Working Area	3000mm × 1500mm	4000mm × 2000mm	2500mm × 6500mm
Laser Power	1.5kW - 12kW	1.5kW - 12kW	1.5kW - 12kW
Transmission System	Double rack & pinion and servo drive	Double rack & pinion and servo drive	Double rack & pinion and servo drive
Max Acceleration	1.4G	1.4G	1.2G
Max Speed	140m/min	140m/min	100m/min
Positioning Accuracy	+/- 0.05mm / 1000mm	+/- 0.05mm / 1000mm	+/- 0.03mm / 1000mm
Repositioning Accuracy of Clamp	+/- 0.03mm / 1000mm	+/- 0.03mm / 1000mm	+/- 0.02mm / 1000mm
Format	LXD, DXF, PLT, AI, NC etc.
Working Environment	0 - 45°C • Humidity ≤ 80% • Non-condensing
Equipment Power	10kW (without laser & chiller)	10kW (without laser & chiller)	8kW (without laser & chiller)
Power Supply	Three phase 380V/50Hz or 60Hz
Max Load	3000Kg	3600Kg	8000Kg
Machine Weight	<1400Kg	<1400Kg	—
Overall Size	5010×2260×2100mm	6400×2800×2100mm	9600×4000×2100mm

Configuration Details.

No.	Item	Description	Remark
I Machine body
1.	Linear guide rail	High precision grade	OWN brand /Hiwin/Equivalent
2.	Rack & pinion	Imported high speed and high precision	OWN brand/YYC/Equivalent
3.	Planetary reducer	Imported high precision	France brand-MOTOREDUCER/Equivalent
4.	Gantry	Finite element optimization, light weight and high rigidity	OWN brand/Equivalent
II Laser source
1.	Power	1000W~6000W
2.	Brand	Max
III Optical system
1.	Auto focus cutting head	Auto focus	BOCI Auto Focus Head/Equivalent
IV Control and drive system
1.	Motion Control System	Professional laser cutting software, operation is very simple	CYPCUT/Equivalent
2.	Motor	X-axis servo motor Y-axis servo motor Z-axis servo motor	France-Schneider/Equivalent
3.	Electrical control system	Electrical components are international brands such as Schneider	France brand/Equivalent
4.	Industrial computer	WINDOWS 10 SYSTEM
V Accessory
1.	Cooling system	Double circulation system, over temperature alarm, flow protection, water level protection	S&A/Equivalent
2.	Exhaust blower	380V/50Hz or 60Hz/3KW/2900rpm
3.	Pneumatic components	Pressure regulating filter, solenoid valve, check valve, etc.	Airtac/SMC/Equivalent
4.	Precision electronically controlled proportional valve	0~1MPa	SMC/Equivalent
5.	Dustcollector		Topsin Optional / Equivalent

Visit Product Portfolio

Explore our complete CNC and sheet-metal machines to find the perfect solution for your manufacturing needs.

Book a Demo

Schedule a live machine demonstration and experience real-time performance, accuracy, and capability with our experts.

Run Critical Trials

Test your own parts on our machines to validate accuracy, quality, speed, and production feasibility.

Get a Quote

Receive a customized quotation with clear pricing and specifications tailored to your exact manufacturing requirements.

Metal Fabrication

Aerospace

Electrical & Electronics

Home Appliances

Automotive Components

Elevators

Signage & Advertising

Precision Accessories

Metal Fabrication

Aerospace

Electrical & Electronics

Home Appliances

Automotive Components

Elevators

Signage & Advertising

Precision Accessories

Dual Servo Drive for High-Speed Cutting

Aviation-Grade Aluminum Gantry

Auto-Focus Laser Head for Fast Piercing

High Accuracy & Stability

Professional Laser Cutting Software (Optional)

Core part-laser source

The focus is controlled by the inner precision servo motor, no need for manual operation. Punching time reduced by 80% compared to common cutting head. Best match for high-speed thick-metal material cutting and highly reflective material cutting.

Core part-laser source

Always Ensure Adequate And Timely Supply Of Petroleum Products.

Quis distinctio eos culpa quia aut quam molestias qui aspernatur optio et sapienteipsanon veritatis enim, Eum rerum ipsam ea harum libero.

Core part-structure

Ensure Stable and Timely Petroleum Product Supply Nationwide

Maintain steady fuel distribution across all regions, especially during peak periods, emergencies, or market fluctuations affecting supply chains.

Core part-moving system

Maintain Reliable and Steady Petroleum Product Distribution

Hand controller isavailable,easy foroperation; France brand Schneider drive & servo motor & France brand MOTOVARIO reducer Gantry double rack & pinion, double servo motor transmission structure, high inertia and large torque output The maximum acceleration can reach 1.4G, which effectively improve the customer’s production efficiency
